Install Instructions
In-Ground Products
Parts:
– Bike Rack
Tools Required:
– Concrete Core drill (minimum 6" wide)
– Concrete for filling (for existing concrete)
– 2" x 4" for use as spacer
All Install Types
Place the rack in the location and mark the legs, use your architect’s or spec sheet drawing as a guide for spacing.

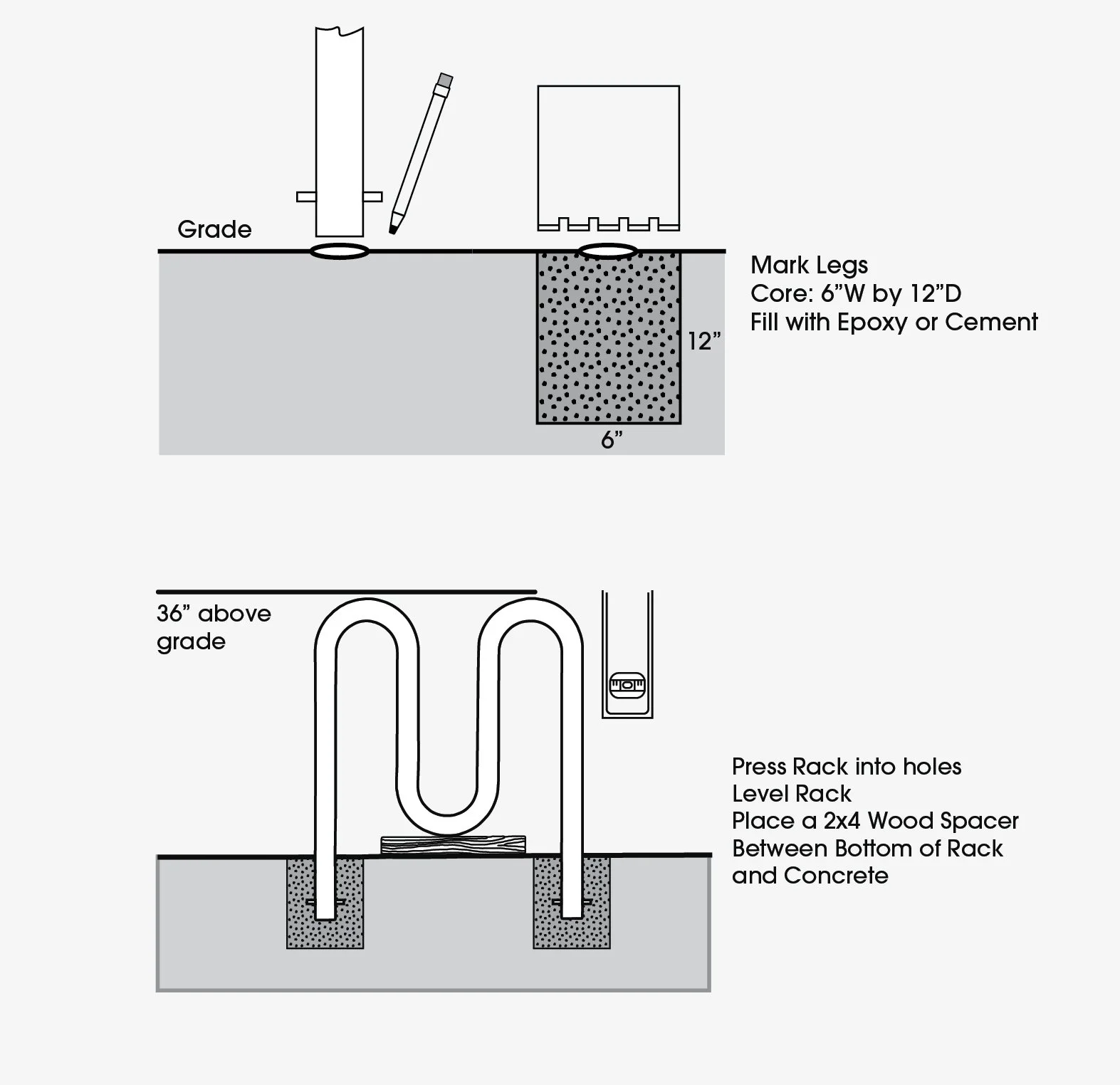

For Existing Concrete
Core concrete min. 6” diameter and 12” deep to clear the pins in the rack.
Fill the cored holes with wet concrete.
Place the rack in the holes, pushing out the excess.
Use a 2x4 to keep the rack off the ground as shown.
Smooth excess concrete around each leg.

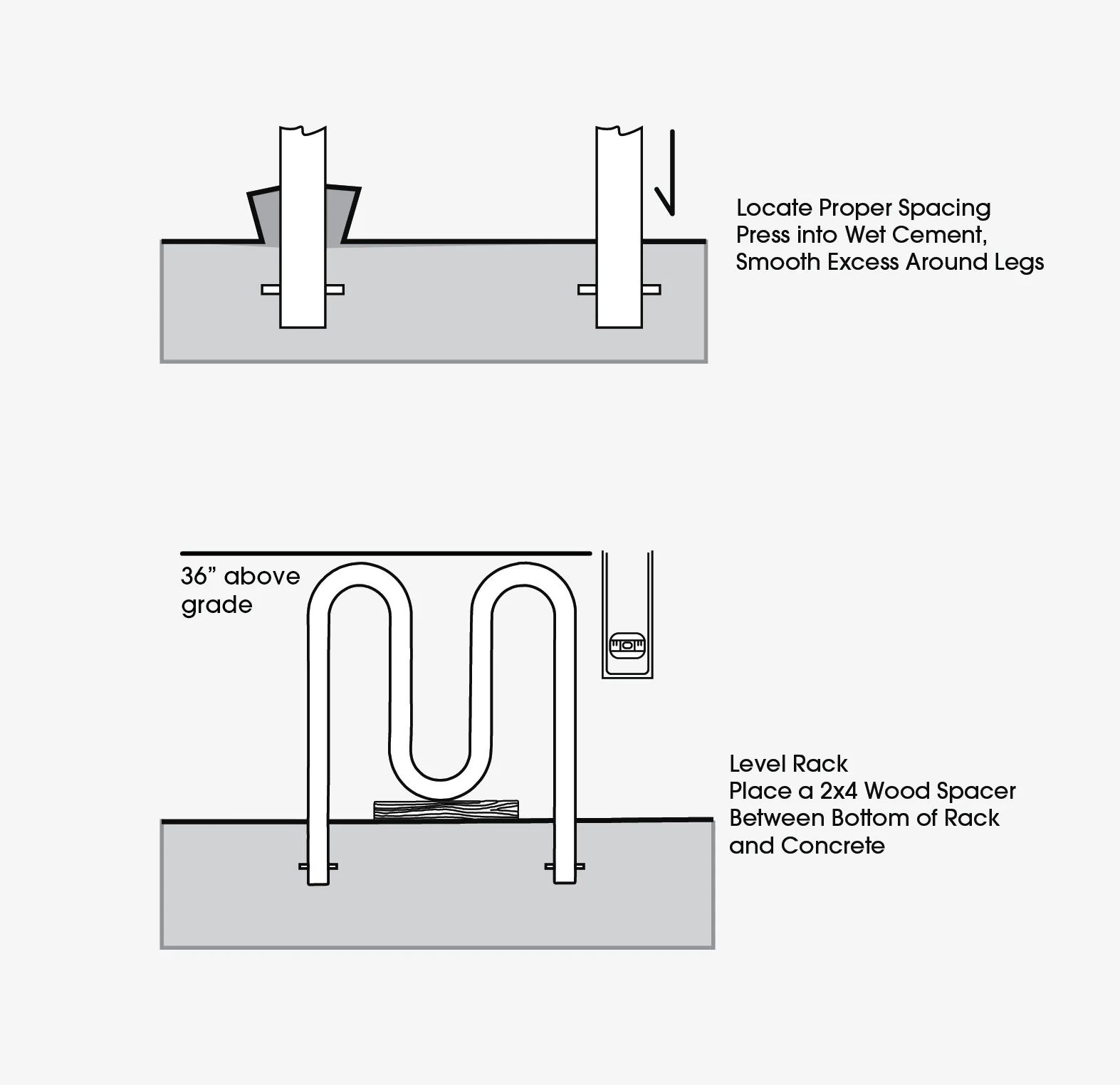

For Wet Concrete:
After locating proper spacing, press rack into the wet concrete.
Use a 2x4 to keep the rack off the ground as shown.
Smooth excess concrete around each leg.
