Install Instructions

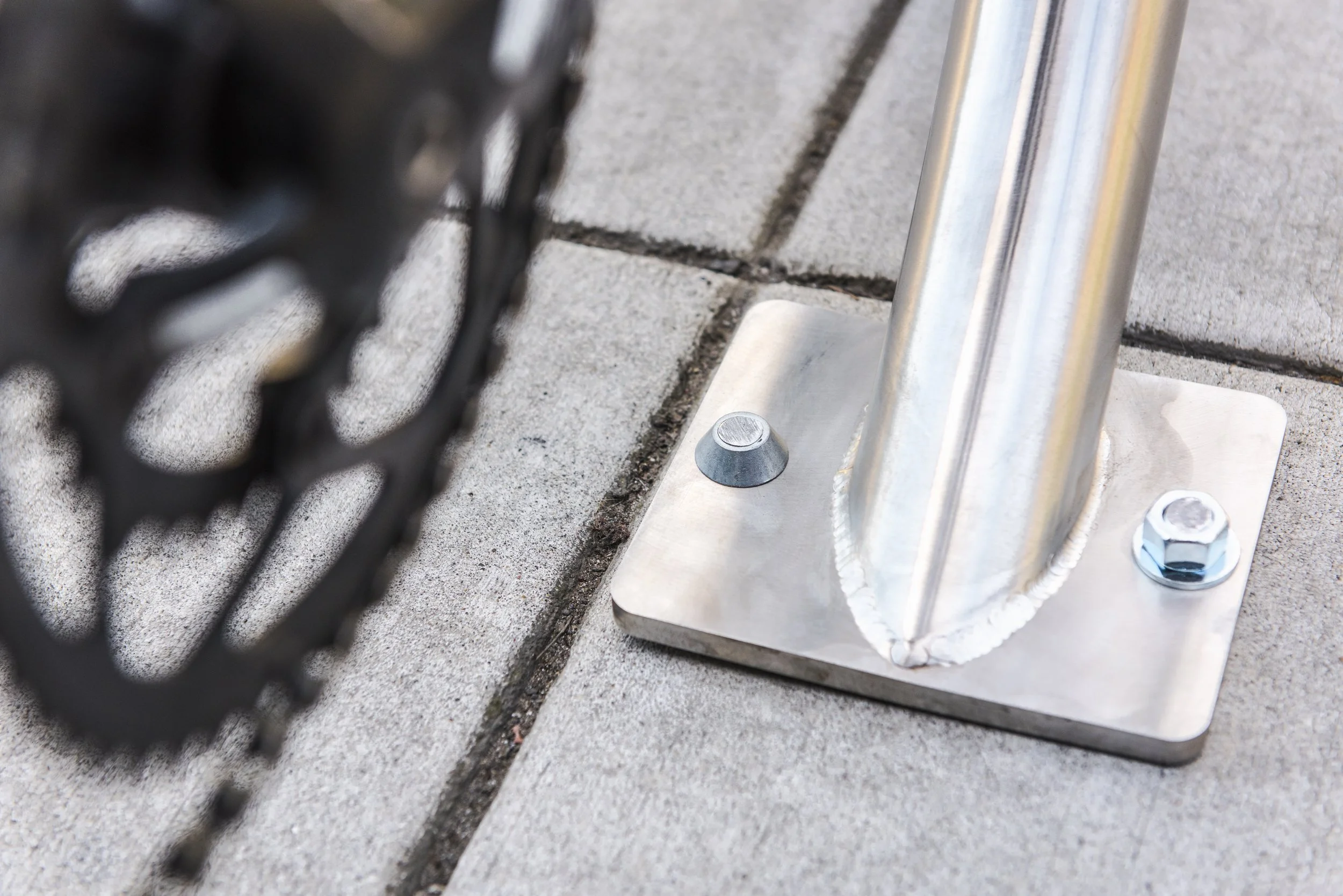

Flanged Products

Parts:

– Bike Rack

– Anchor Bolt Kit

– Washers for leveling

Tools Required:

– Hammer drill

– Masonry drill bit

– Wrench

– Hammer

– Level

– Marker or Pencil

– Safety Glasses

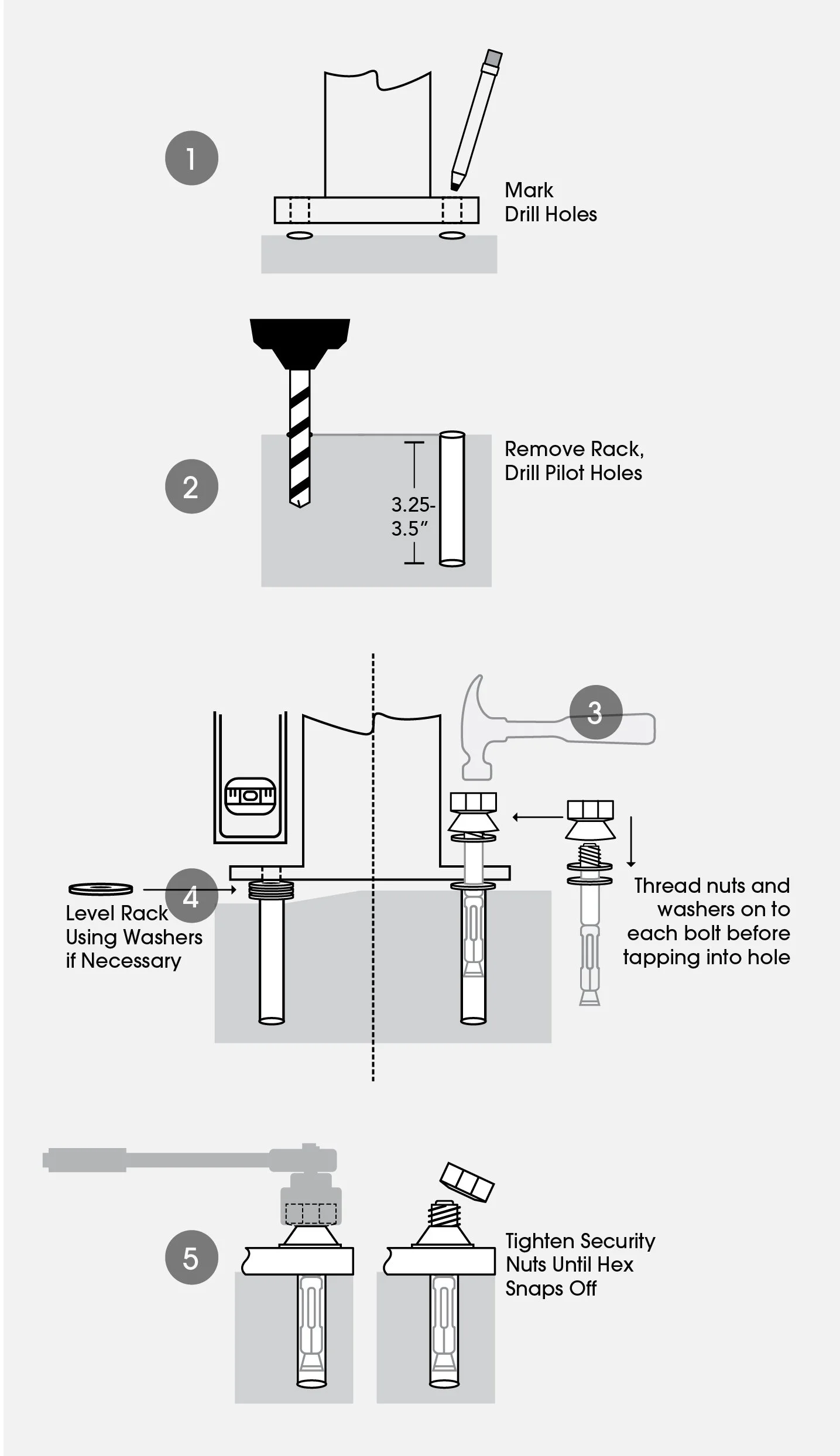

Flange Install Steps

  1. Place the rack in the location, use the spec sheet drawing as a guide for spacing.

    Use a marker or pencil to outline each of the bolt holes in the flange onto the install surface.

    IMPORTANT: Make sure the holes are 3” away from any cracks in the surface material.

  2. Remove the rack from the marks and use your guides to drill 3.25-3.5” deep pilot holes.

  3. Replace the rack over the drilled holes. Use washers to level if needed.

  4. Thread nuts and washers onto each bolt then tap the anchor bolts into the holes with a hammer.

  5. Tighten down hex nuts until secure. Tighten down security nuts until hex snaps off leaving the cone on the threads
