The Hawthorne Floor Mount Rack (Double)

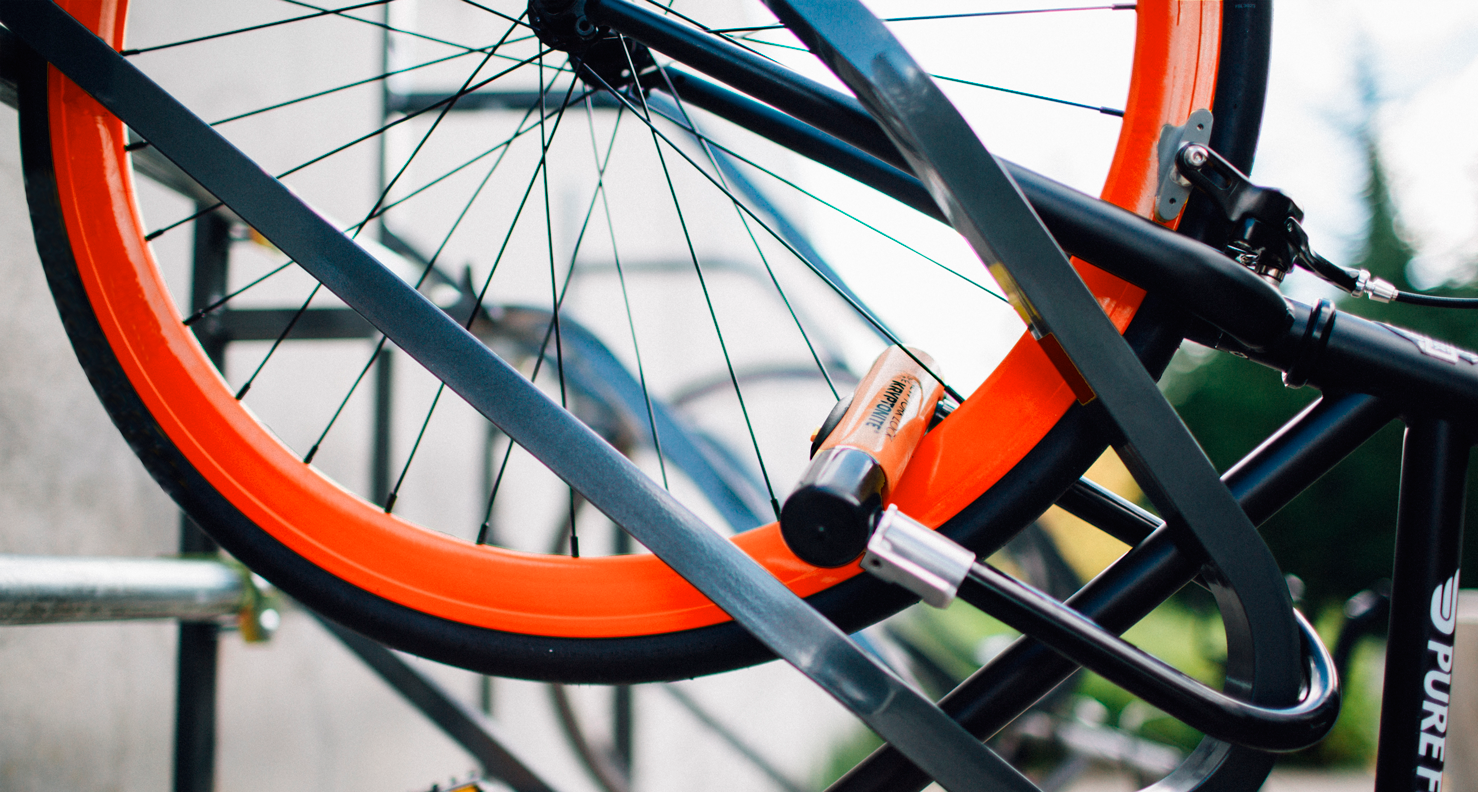

The freestanding, ultra–customizable double-sided Hawthorne commercial bike rack is the next level in vertical bicycle parking. All of our Hawthorne racks work great indoors and out and allow cyclists to lock their wheel and frame together.
DOWNLOAD RELATED FILES:
CONSTRUCTION / MATERIAL:
Hooks:
1.0˝ Square Mild Steel TubingHook Cushions:
Santoprene TPVAnti-sag Truss Bar:
Galvanized Steel TubingMounting Feet:
Anodized AluminumDIMENSION OPTIONS:

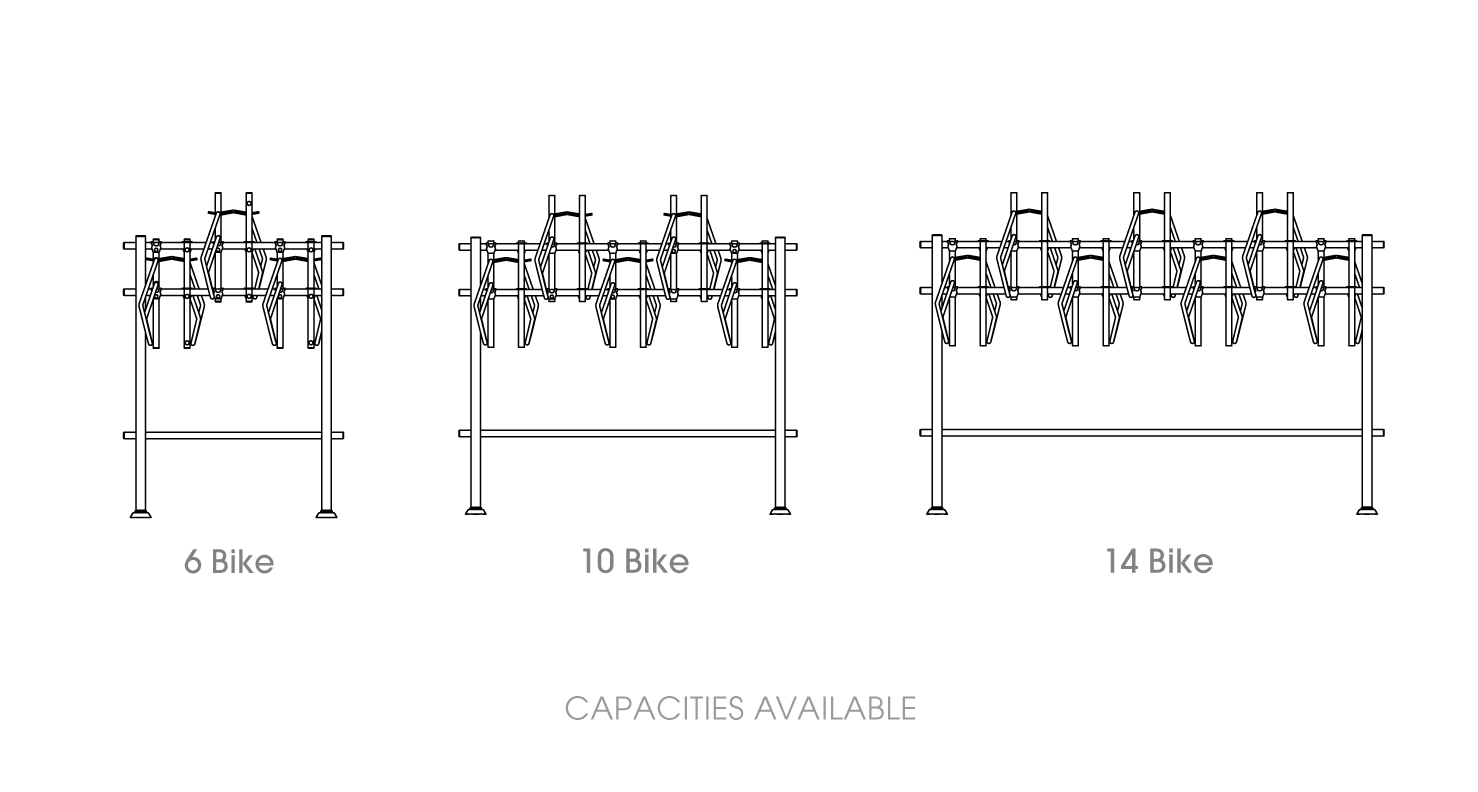

55.9˝ Width84˝ Height
- 6 Bike 56.8˝ Length
- 10 Bike 88.8˝ Length
- 14 Bike 120.8˝ Length
Based on 16˝ spacing, wider spacing available to meet city requirements.
CAPACITY:
6, 10, 14 BicyclesINSTALLATION:
(4) .63˝ Mounting Holes
FINISH:
Charcoal Powder CoatLearn more about the Powder Coating Process
FEATURES:
Gear HangerU-Lock Compatible
Santoprene Wheel Hook Cushion
Site-specific Custom Bike Room Layouts Available
ADDITIONAL OPTIONS, SUBMIT A QUOTE REQUEST FOR PRICING:
Vinyl cable (Additional cost)
View Cable
A stainless steel braided cable coated in a clear vinyl (keeps bikes from being scratched)
No-Scratch Protection (Additional cost)
View Bumper
Santoprene bumpers on the bike side of the loop.
